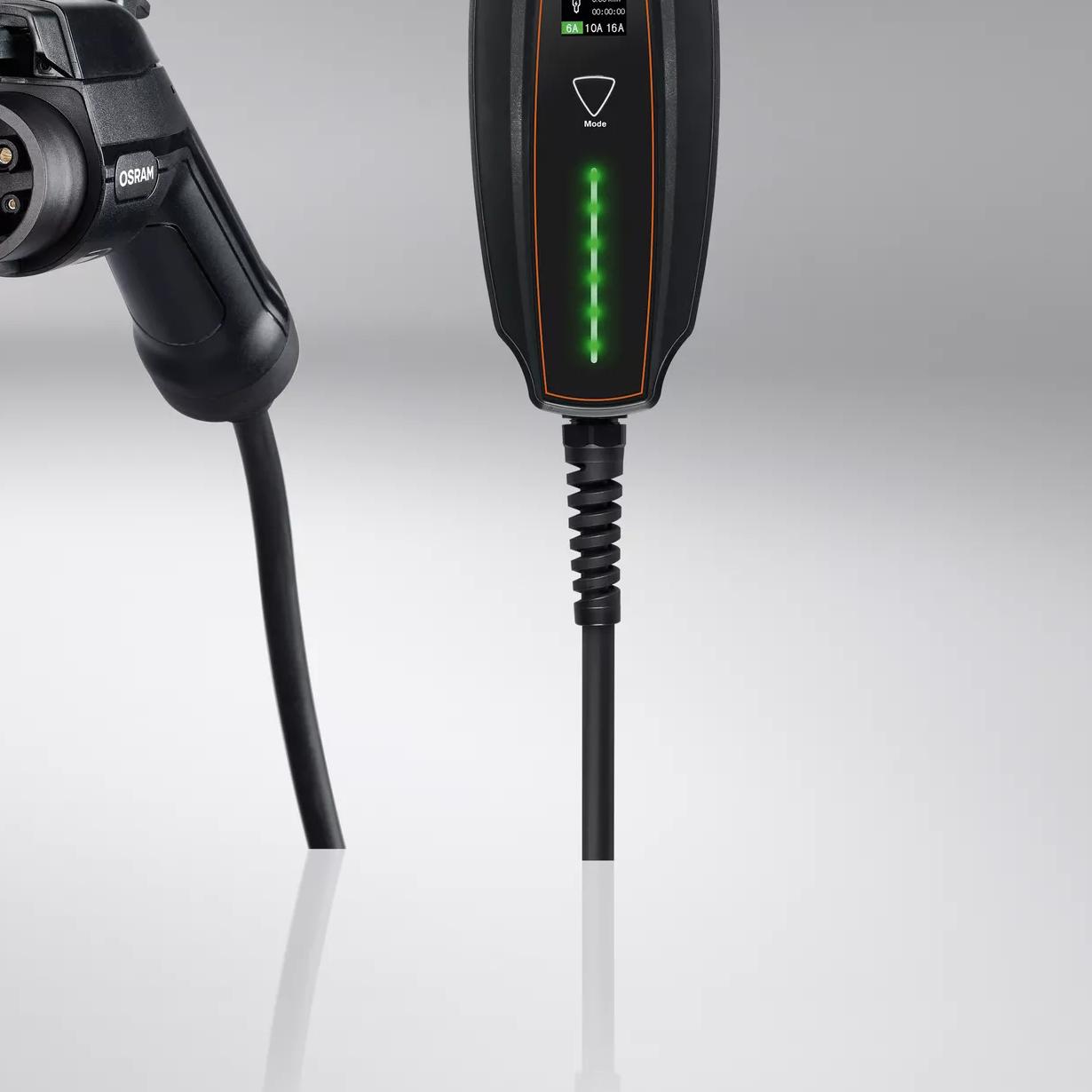

BATTERYcharge 5PIN | PORTABLE | Type 1 OPC10A05
OSRAM на пути к экологически чистому будущему
Discover the world of electric driving with OSRAM. Charge your all-electric or plug-in hybrid type 1 vehicle on the road or at home from a 2-pin 230V socket. The charging cable is equipped with ergonomic handles for optimal handling and has a length of 5 meters. It is suitable for use at home or on the move thanks to the IEC TR 60083 Schuko plug. In addition, the charging cables are equipped with dust protection caps and tested for water resistance according to IP65 and shock resistance according to IK10. Even when connected, the electrical contact points are protected against the ingress of dust and splash water in accordance with IP65 and IK10. The scope of delivery also includes a durable, compact storage bag to neatly store the cable after charging. In addition, the product is TÜV and CE certified and comes with a 2-year guarantee*
6/10/16 Ampere
Variable charging currents of 6A/10A/16A meet individual charging requirements1.3/2.2/3.6 kWh
Variable charging rates of 1.3/2.2/3.6 kWh meet individual charging requirements5m cable length
Эргономичные ручки для оптимального управления, кабель длиной 5 метровCharge at home and on the move
With a 230V socket to the vehicle with type 1 charging connectionТехнические данные
Информация о продукте
Charging Point Charger Type
Socket
Чехол для хранения
Да
Vehicle Charger Type
Type1
General Product Information
Номер заказа
OPC10A05
Электрические параметры
Номинальное напряжение
240
Номинальный ток
6 A /10 A /16 A
Номинальная мощность
1300 W /2200 W /3600
Physical Attributes & Dimensions
Ширина
120.0
Высота
130.0
Длина
5000
Срок службы
Гарантия
2 years
Дополнительные данные
Рабочая температура
-25 +45
Сертификаты и Стандарты
Стандарты
TÜV / CE
IK Class
IK10
Тип защиты
IP65
Нормативная и природоохранная информация
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Список компонентов вещество 1
Lead
CAS-номер вещества 1
7439-92-1
Инструкция по безопасному использованию
The identification of the Candidate List substance is sufficient to allow safe use of the article.
Номер декларации в базе данных SCIP
1ca0f4d5-506e-4c70-b2ac-4b5d5d7fb673
Информация об упаковке
EAN |
тип |
Штук |
Размеры |
Масса |
Объем |
|---|---|---|---|---|---|
| 4052899624085 |
FLH
| 1 | |||
| 4052899624153 |
VS
| 4 |
